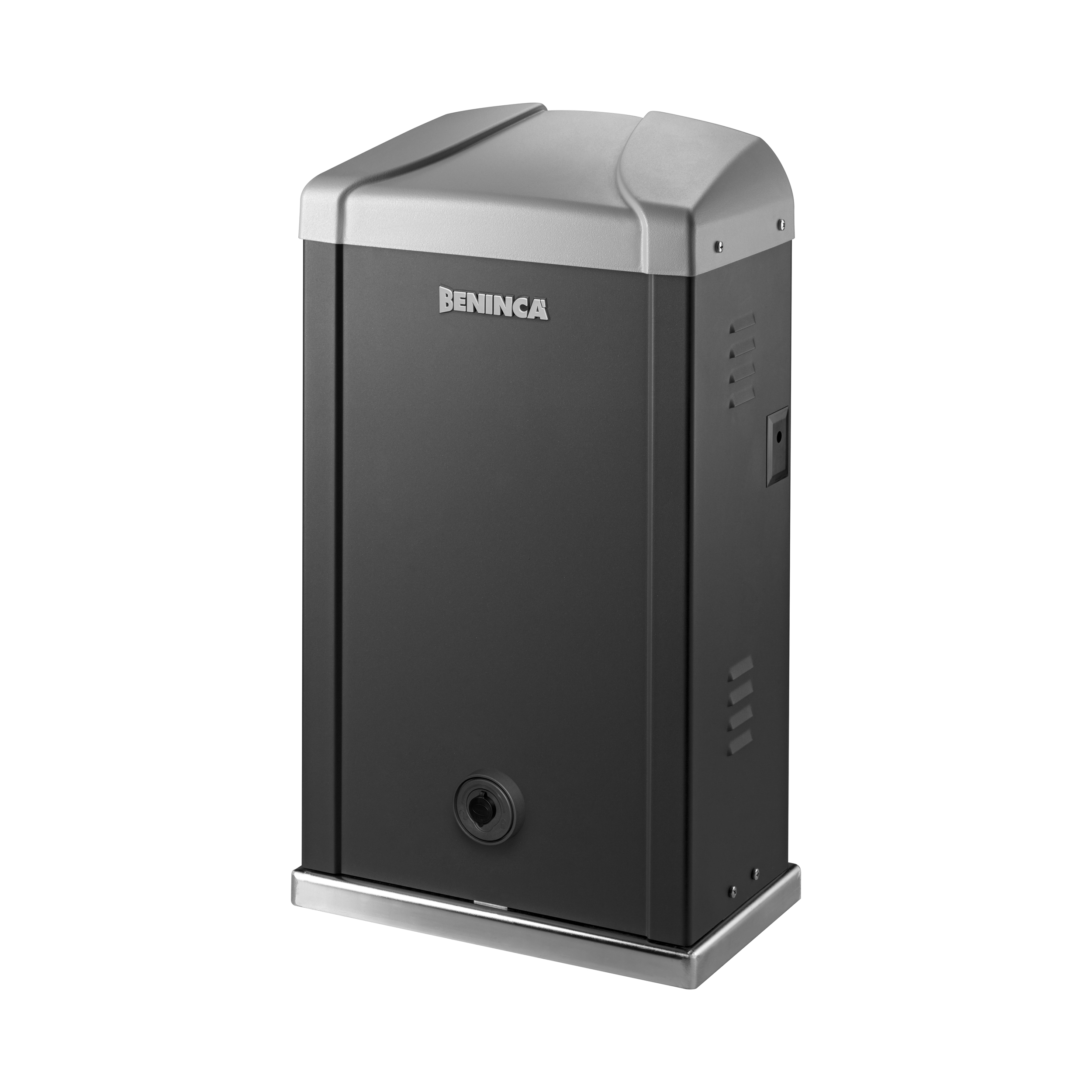

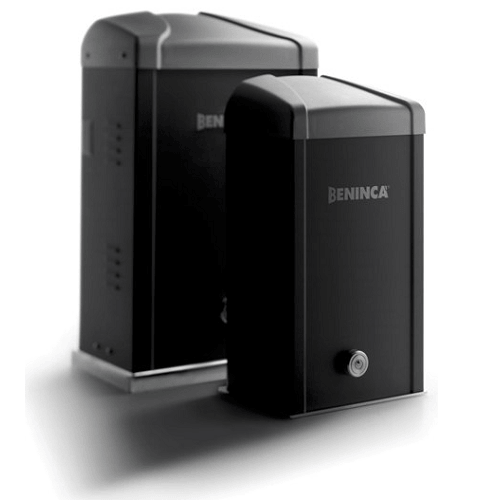

Beninca BISON 45 OTI sliding gate motor
Beninca BISON 45 OTI sliding gate motor - Image 2
Beninca BISON 45 OTI sliding gate motor - Image 3
Beninca BISON 45 OTI sliding gate motor - Image 4
Beninca BISON 45 OTI sliding gate motor - Image 5
Beninca BISON 45 OTI sliding gate motor - Image 6

Beninca BISON 45 OTI sliding gate motor

Power Supply:

Input: 400 Vac (50-60Hz) three-phase.
Motor Supply: 400 Vac.
Performance:

Maximum Absorbed Current: 2.85 A.
Maximum Thrust: 5000 N.
Opening Speed: 19 m/min.
Duty Cycle: Intensive use.
Operating Conditions:

Protection Level: IP44.
Operating Temperature: -20°C to +50°C, suitable for Saudi Arabia’s climate.
Features:

Integrated Control Unit.
Integrated Receiver.
Encoder for precise gate movement.
Magnetic Limit Switches.
Pinion for Rack: M6 Z18.
Lubrication: Oil.

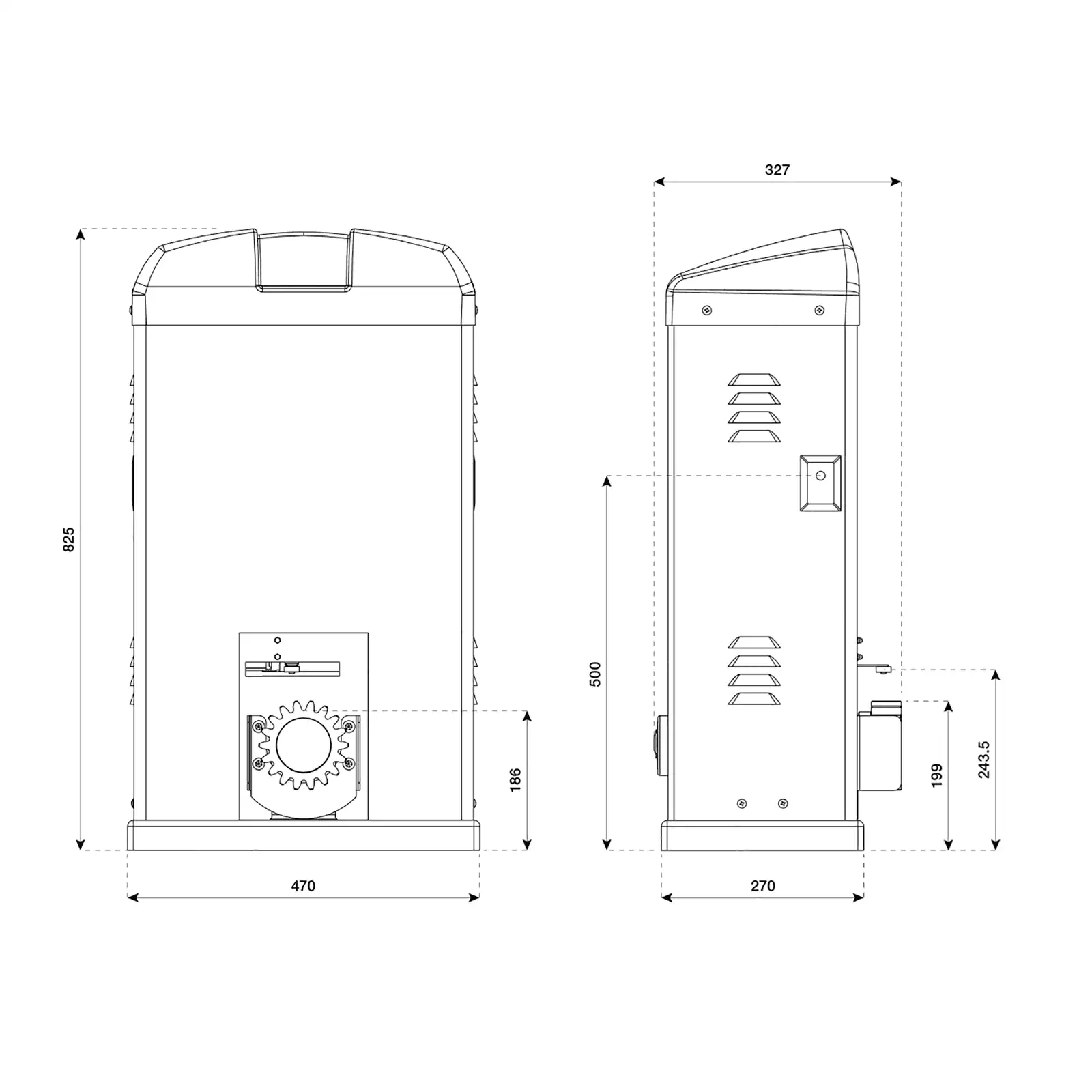

Dimensions:

Maximum Gate Weight: 4500 kg.
Weight: 66 kg.

Category:

Description

The Beninca BISON 45 OTI is a robust Italian-made sliding gate motor engineered for intensive use, capable of automating gates weighing up to 4500 kg. Its advanced features and durable construction make it an ideal choice for industrial and commercial applications in Saudi Arabia.

Technical Specifications:

Power Supply: 400 Vac three-phase (50-60 Hz)
Motor Supply: 400 Vac three-phase
Maximum Thrust: 5000 N
Opening Speed: Adjustable between 7 to 19 meters per minute
Duty Cycle: Designed for intensive use
Protection Level: IP44, offering resistance to dust and splashing water
Operating Temperature: Functions efficiently between -20°C to +50°C
Maximum Gate Weight: Suitable for gates up to 4500 kg
Lubrication: Oil-bath system ensuring optimal performance and longevity
Weight: Approximately 66 kg
Key Features:

Inverter Technology: Allows for gradual speed variation during acceleration and deceleration, ensuring smooth operation and enhanced safety.
Integrated Control Unit: Comes with a built-in receiver, magnetic encoder, and inverter for precise control.
Magnetic Limit Switches: Ensure accurate and safe gate positioning.
Oil-Bath Gear Motor: Provides high efficiency even at low temperatures, enhancing durability.
Protective Casing: Treated and painted for increased resistance to environmental factors.
Emergency Release: Equipped with a personalized release key for manual operation during power outages.
Why Choose Beninca BISON 45 OTI for Saudi Arabia?

Durability: Built to withstand the harsh climatic conditions prevalent in Saudi Arabia.
High Performance: Suitable for heavy-duty applications, ensuring reliable operation for large gates.
Safety: Advanced features like inverter technology and magnetic limit switches provide enhanced safety for users.
Ease of Maintenance: The oil-bath lubrication system reduces maintenance frequency and extends the motor’s lifespan.
SEO Keywords:

Beninca BISON 45 OTI sliding gate motor
Heavy-duty gate automation in Saudi Arabia
Industrial sliding gate operator 4500 kg
Inverter technology gate motor
IP44 sliding gate motor for harsh climates
Oil-bath lubricated gate motor
High-performance gate automation Saudi Arabia
Durable sliding gate motor for industrial use
For more information or to request a quote, please contact us.
