BENINCA BULL20T

Description

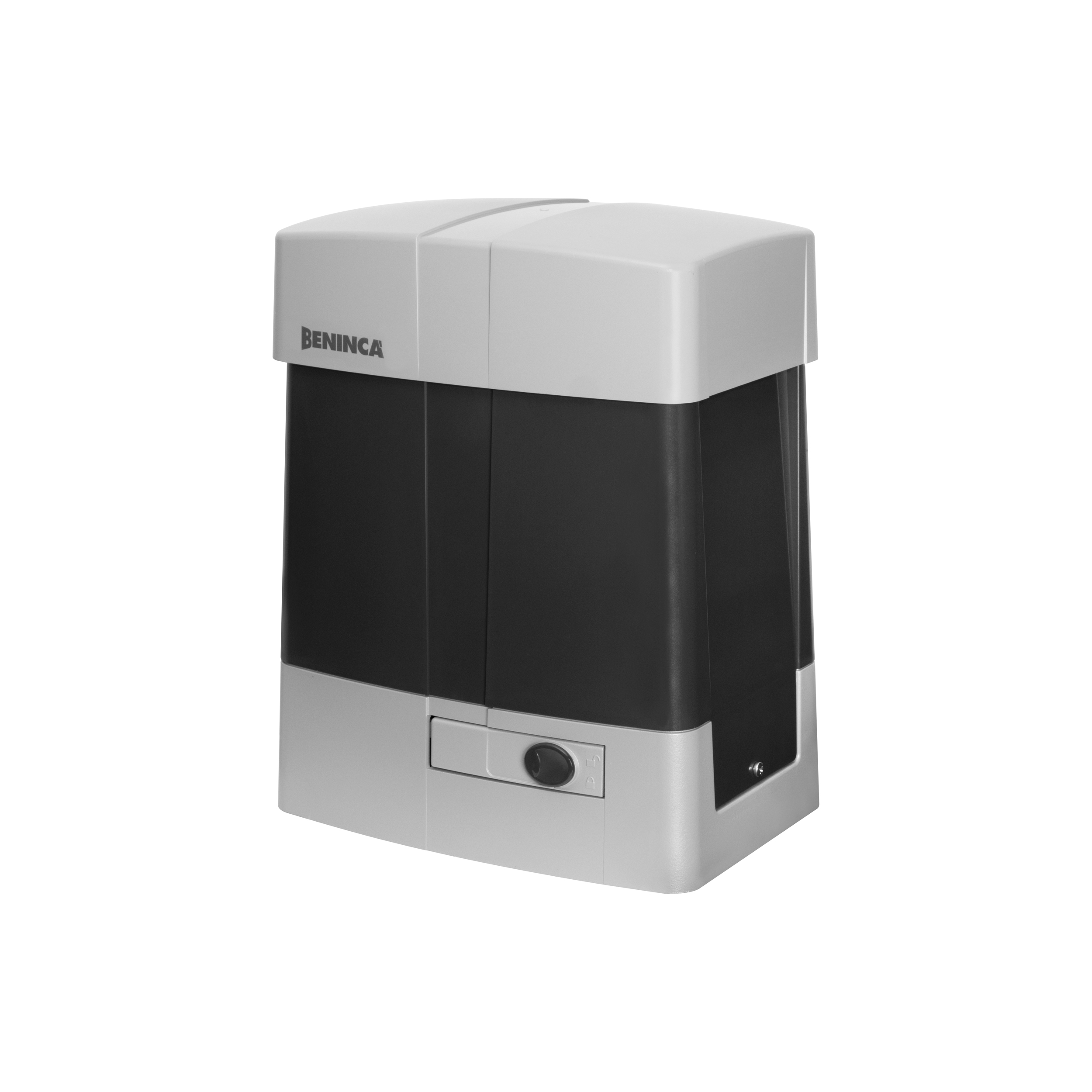

Beninca BULL20T Sliding Gate Motor

The Beninca BULL20T is a robust sliding gate motor designed for industrial applications, capable of automating gates weighing up to 2000 kg.

Key Specifications:
Power Supply: 400 Vac three-phase
Maximum Absorbed Current: 1.7 A
Maximum Thrust: 2000 N
Opening Speed: 10.5 m/min
Duty Cycle: Intensive use
Protection Level: IP44
Operating Temperature: -20°C to +50°C
Maximum Gate Weight: 2000 kg
Weight: 21.3 kg
Integrated Receiver: Yes
Movement Distance: 20 meters
Warranty: Two years
Features:

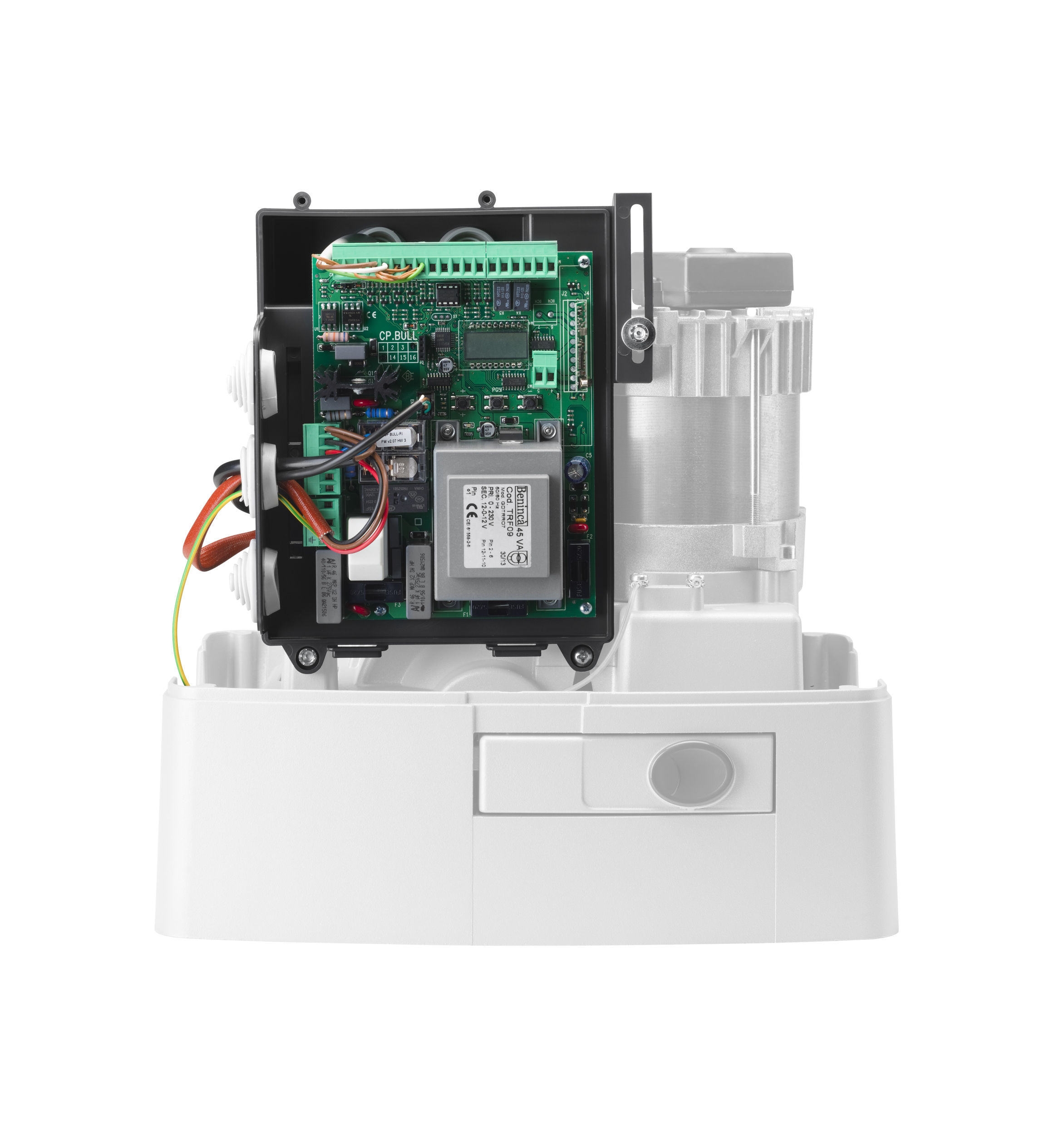

External Control Unit: Equipped with an external control unit featuring electronic braking for precise and safe gate movements.
High-Quality Insulation: The motor body is fully insulated, protecting internal components from dust and water ingress.
Manual Operation: In case of emergencies, the gate can be manually operated to ensure continuous access.
Magnetic Limit Switches: Available in specific versions, providing accurate gate positioning.
Suitability for Saudi Arabian Market:
The BULL20T is engineered to operate efficiently within a wide temperature range (-20°C to +50°C), making it suitable for the varying climatic conditions in Saudi Arabia. Its IP44 protection level ensures resilience against dust and water, common environmental factors in the region.
