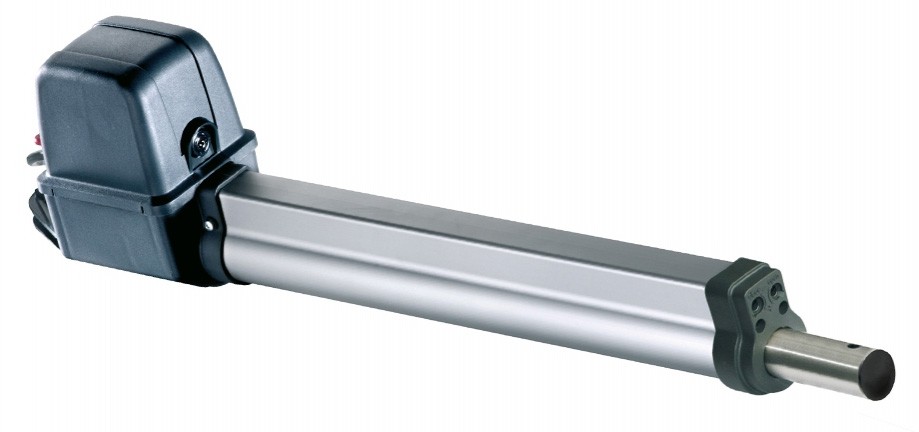

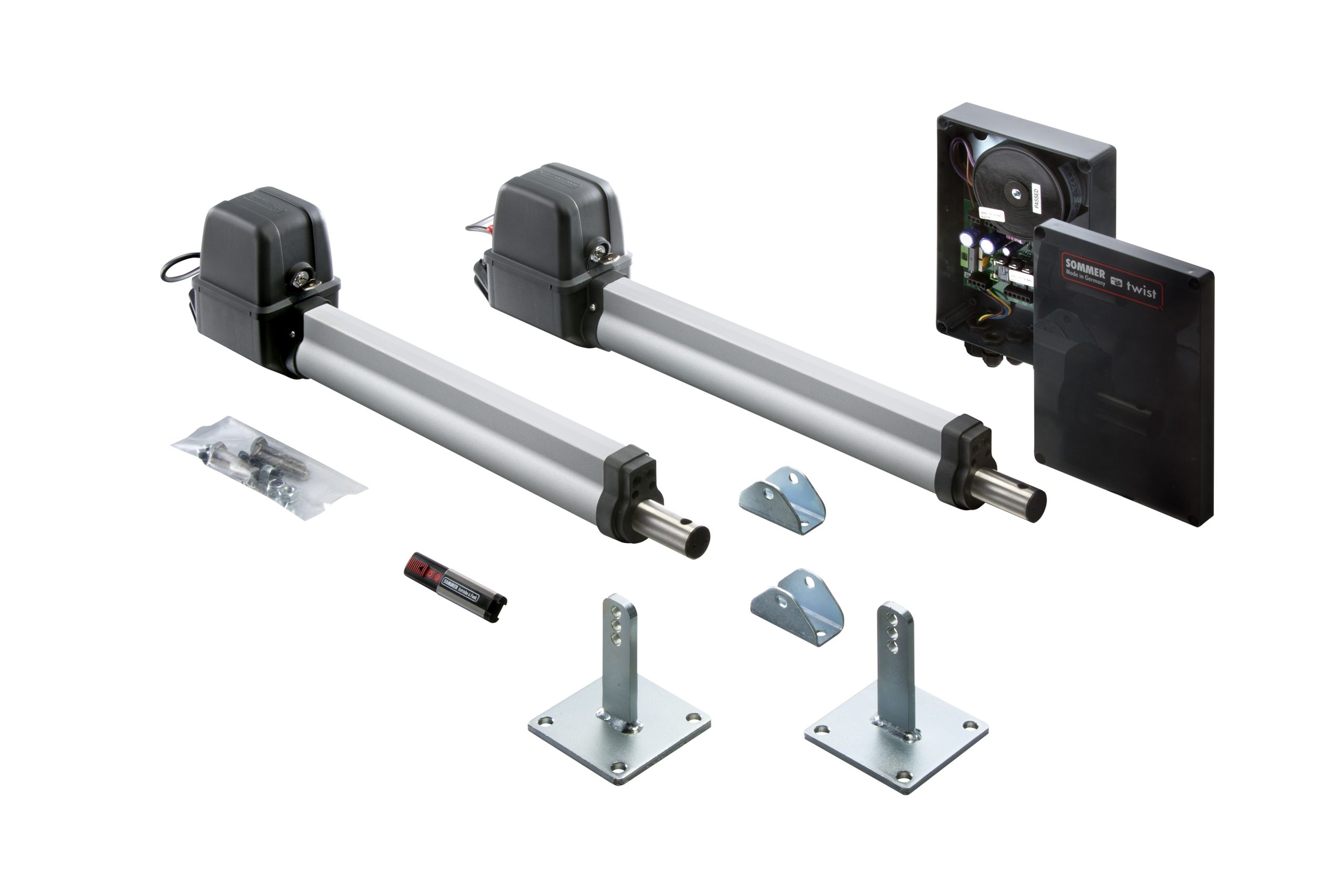

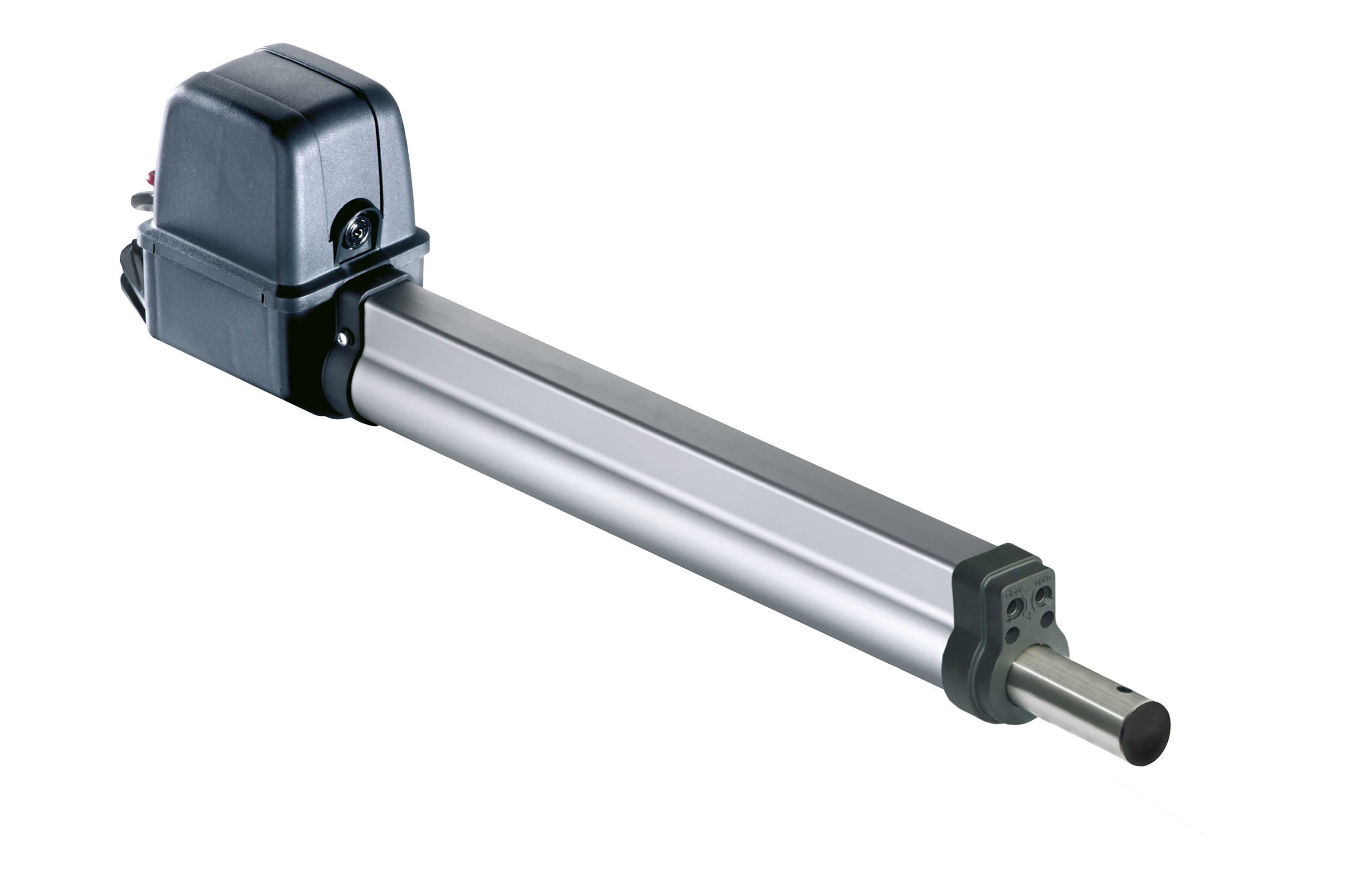

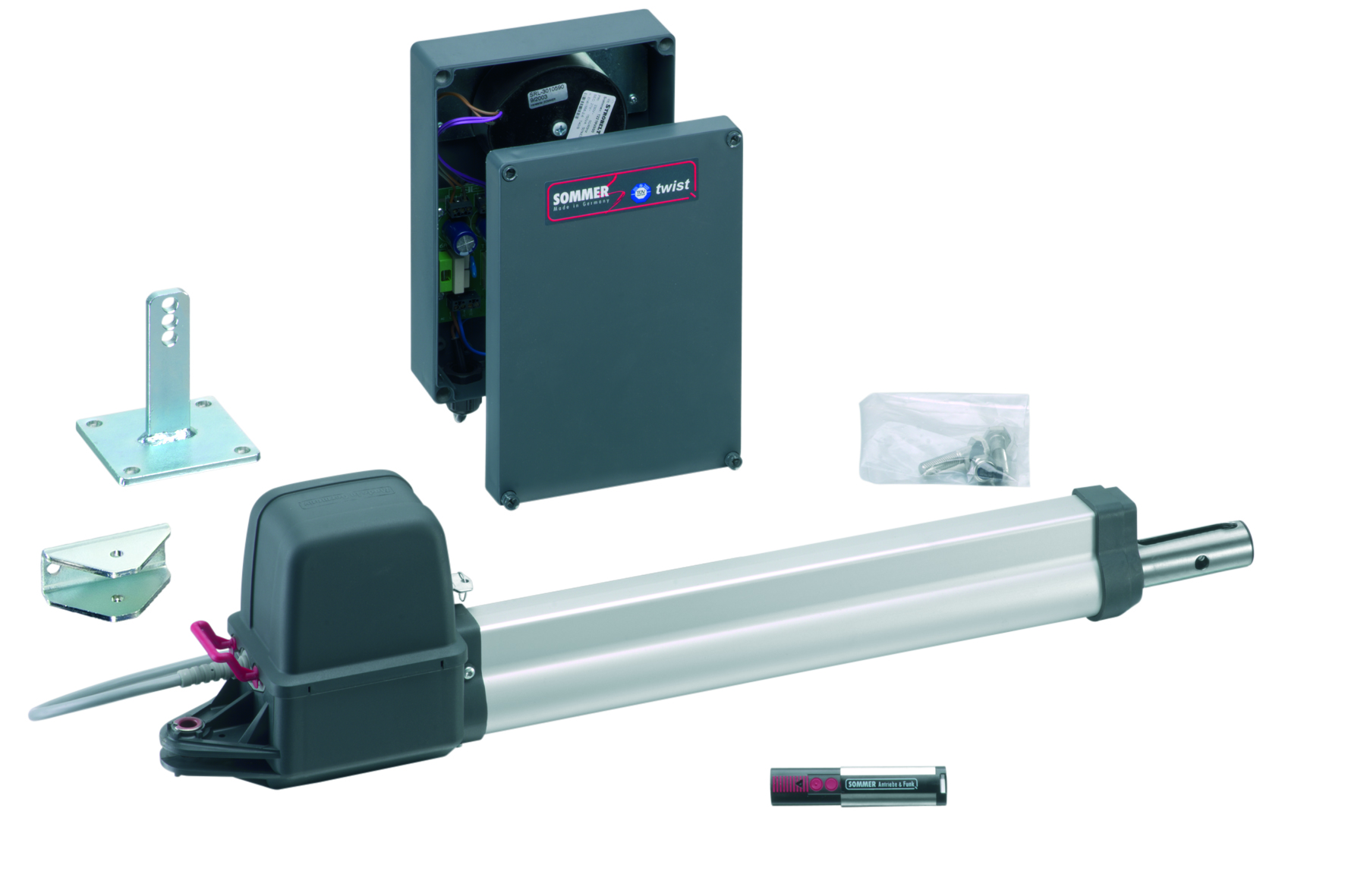

Sommer twist 200 E “swing”

Gate Compatibility:

Suitable for single or double swing gates.
Maximum gate leaf width: up to 2.5 meters.
Maximum gate weight: up to 300 kg per leaf.
Operating Conditions:

Temperature range: -30°C to +70°C, suitable for Saudi Arabia’s climate.
Maximum opening angle: 120°.
Maximum gate inclination: 10%.
Power and Performance:

Power supply: 220-240 V.
Maximum pull and push force: 2000 N.
Duty cycle: 15% (S3).
Safety and Convenience:

Obstacle detection with automatic stop and reverse.
Manual release for power outages.
Integrated radio receiver (FM 868.95 MHz SOMloq2) with 40 memory positions.

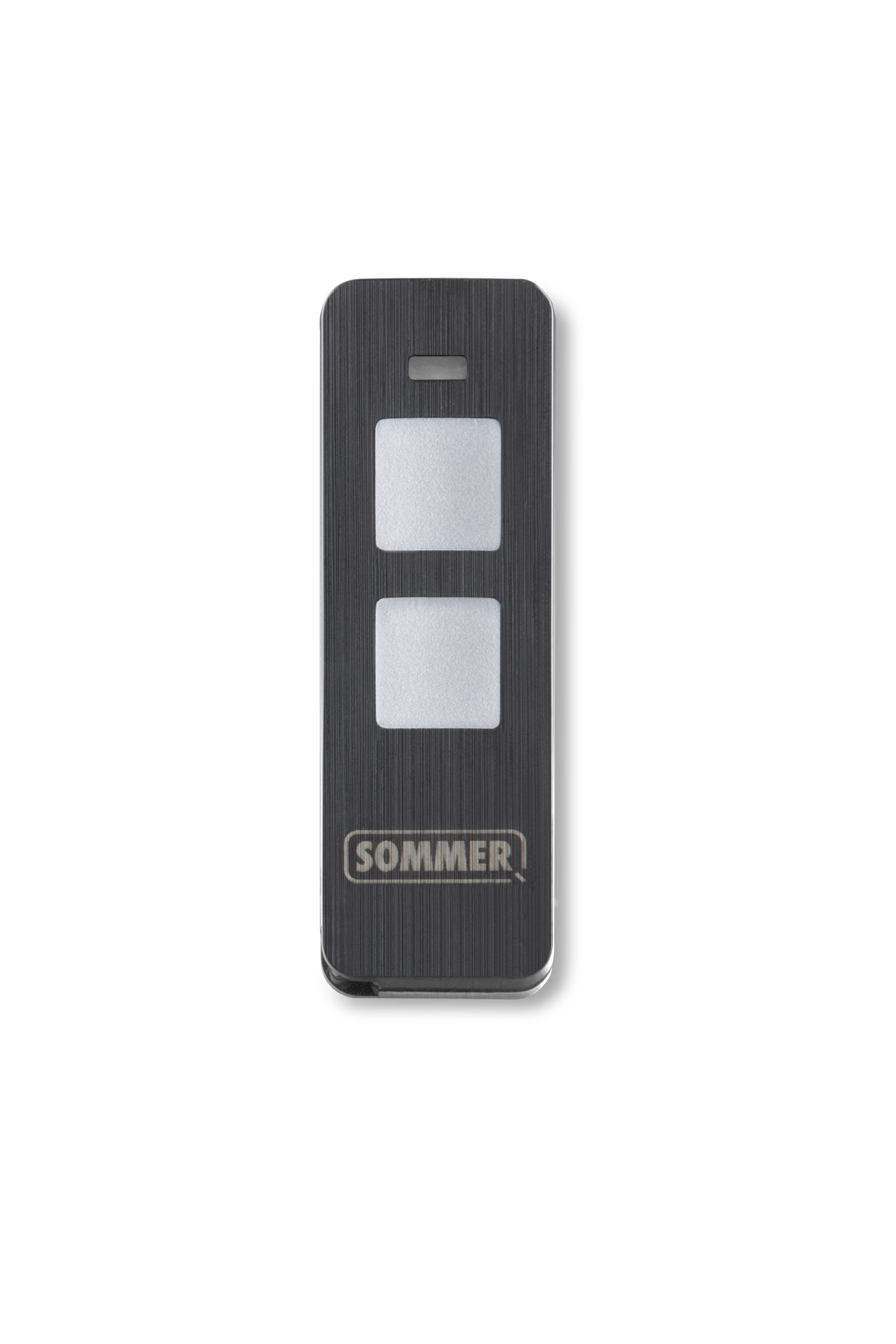

Includes PearlVibe 4-command handheld transmitter with vibration feedback.
Design and Installation:

Universal use for both DIN left and DIN right gates.

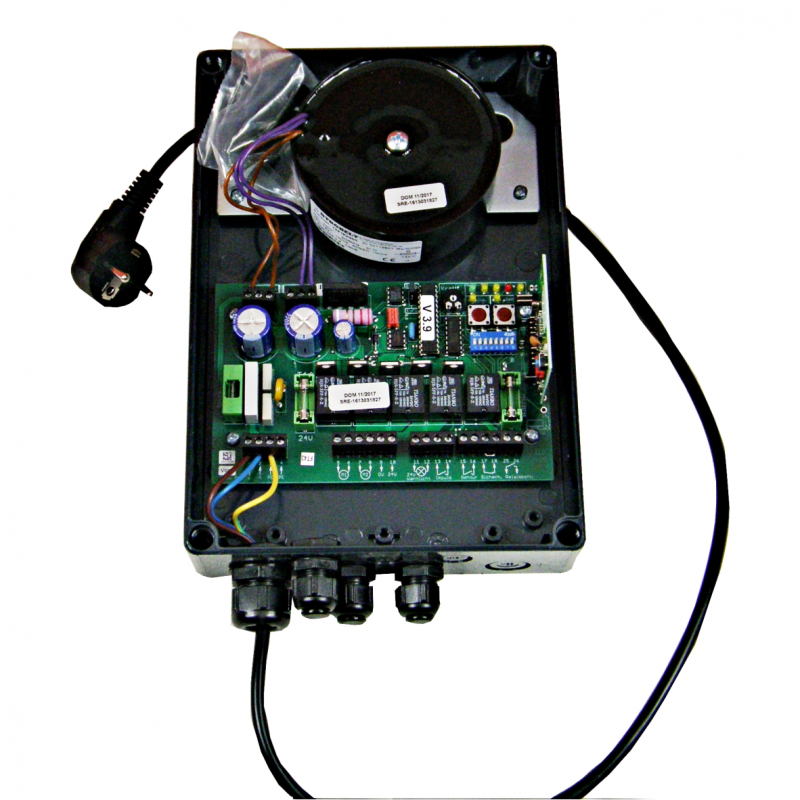

Control unit dimensions: 250 × 175 × 75 mm (IP65 rated).
Energy-efficient with low standby power consumption.

Category:

Description

• For swing gates with a gate wing width of up to 2.5 m or a gate wing weight of 300 kg .
• twist operators can be fitted either to the left or right gate wing.
• With special fittings, also suitable for outward-opening gates.
• Fast installation and easy electrical connection.
• User-friendly control with numerous setting options.
• Improved accident prevention by means of electronically regulated
force measurement with DPS (Dynamic Power System).
• Self-locking, without electric lock up to 1.5 m.
• Operator is easy to release manually in any position
(e.g. in the event of a power failure).
• With stainless-steel precision spindle and stainless steel thrust tube.
• Rust-proof housing made from aluminium and fibre-glass reinforced,
weather-resistant plastic.
• Maintenance-free operator with long service life.
• Optional safety devices can be integrated effortlessly
(e.g. warning light, photocell or electric lock).
• Special features through SOMloq2 radio control system.
• Temperature range ?30 °C … +70 °C • operator IP44. • control unit IP65.
• opening speed is 16.5 seconds.
• Two-year warranty.
