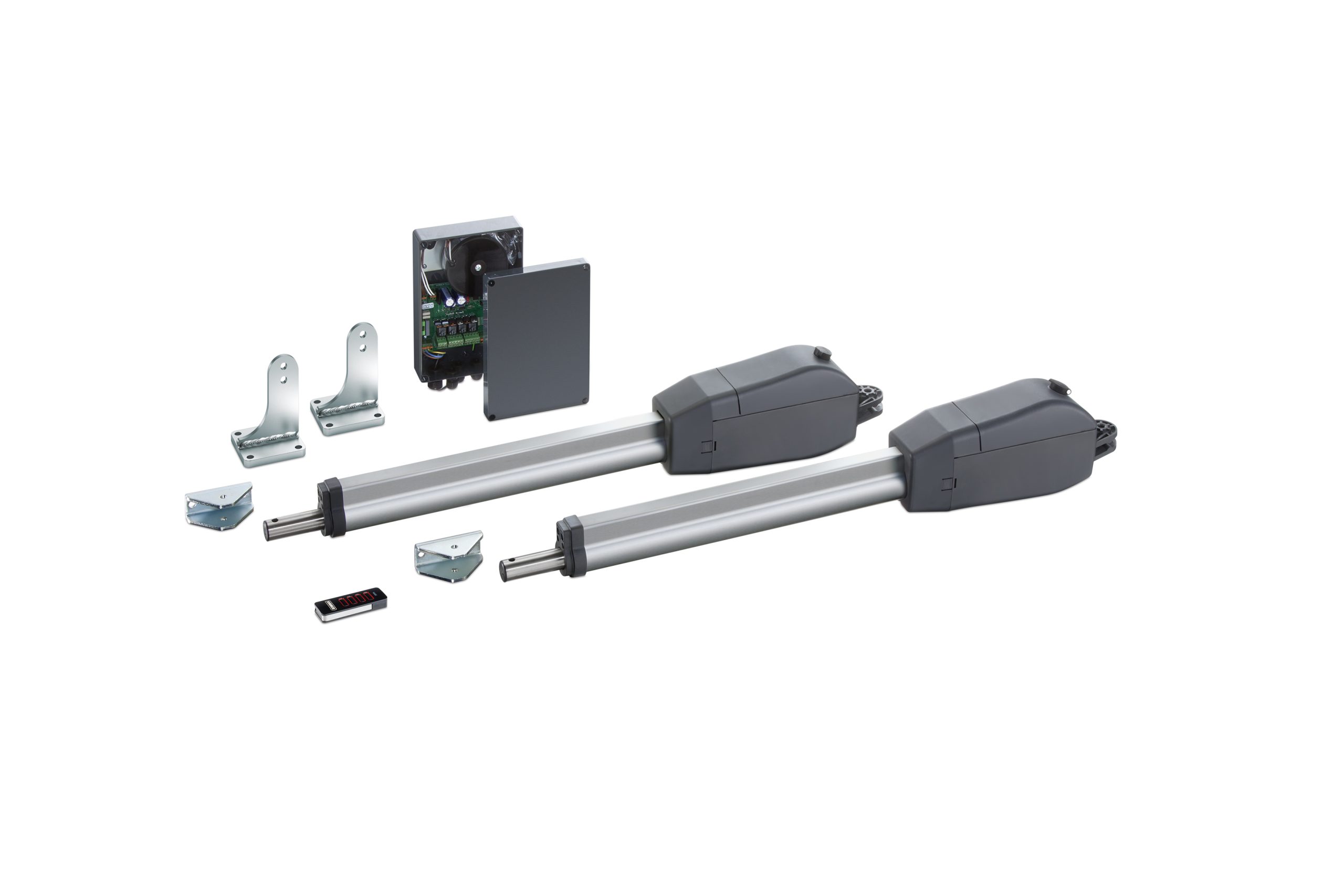

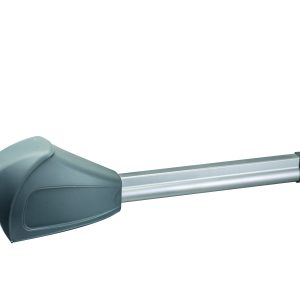

Sommer twist 350 swing

Description

•For swing gates with a gate wing width of up to 4 m or a gate wing weight of 700 kg.
• twist operators can be fitted either to the left or right gate wing.
• With special fittings, also suitable for outward-opening gates.
• The braking system developed and patented by SOMMER makes
for a highly reliable operator – even under extreme loads of up
to 2 tonnes (e.g. wind load or as protection against break-ins and
vandalism).
• Fast installation and easy electrical connection.
• Improved accident prevention by means of electronically regulated
force measurement DPS (Dynamic Power System).
• Self-locking, without electric lock up to 3.5 m.
• Operator is easy to release manually in any position
(e.g. in the event of a power failure).
• With stainless-steel precision spindle and stainless steel thrust tube.
• Rust-proof housing made from aluminium and fibre-glass reinforced,
weather-resistant plastic.
• maintenance-free operator with long service life.
• Optional safety devices can be integrated effortlessly
(e.g. warning light, photocell or electric lock).
• Special features through SOMloq2 radio control system.
• Temperature range ?30 °C … +70 °C • operator IP44. • control unit IP65.
• Two-year warranty. • opening speed is 12 seconds.
